Metalworking & Other Products

In addition to our core lighting business, we are able to offer a variety of metalworking processes, solutions and products

The technologies we work with

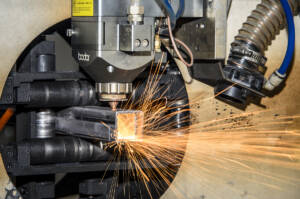

Laser Cutting

Under our disposal are two fiber laser machines 6kW and 2kW laser and One Tube Laser.

With them, on a daily basis, we cut S235JR, S355JR, 6061 Aluminium, Stainless steel 304 and mirror aluminium sheets metals.

For the full capabilities of our machines look into our machine specification presentation.

Details:

Sheet Metal Bending

Automatic Bending Machine: Salvagnini P4Xe

Characteristics of automatic bender:

Maximum length of incoming sheet (mm): 2190
Maximum width of incoming sheet (mm): 1524
Maximum Bending length(mm): 2180

Maximum thickness and bending angle of steel ( s235jr ):
2.0mm (90 degrees); 2.0mm (120 degrees of bending); 2.0mm (135 degrees of bending)

Maximum thickness and bending angle of stainless steel:
2.0mm (90 degrees), 2.0mm (120 degrees), 1.6mm (130 degrees)

Maximum thickness and bending angle of aluminium:
2.0mm (90 degrees), 2.0mm (120 degrees), 2.0mm (130 degrees)

In addition to the automatic panel bender we have three Manual Press Brake machines used for thicker metals:

Most of our luminaires go trough this process. Feel free to have a look at our product page for a general overview.

CNC Spinning and Turning

We operate several lathe machines.

*Two spindle with Y axis lathe - OKUMA LB3000 EXII MYW DBC450
with Ø5μm 24 hour constant precision

* Lathe with tube feeder used for our own fastener solutions

* Two spinning machines

Technical parameters of Spinning machines

Maximum Material Diameter		mm	800
Support Plate Barrel Diameter		mm	N/A
Spindle Center Height			400
Distance between Two Centers			600
Main Motor Power		kw	20frequency conversion
Spindle Speed		rpm	30-2000
Stroke	Horizontal X Shaft	mm	DIA-700
Stroke	Vertical Z Shaft	mm	500
Maximum Jacking Force		kn	25
Jacking Stroke		mm	600
Thrust Reverser Stroke		mm	400
Positioning Accuracy			0.01
Hydraulic Station Motor Power		KW	5.5
Tool Quantity (Optional)		Unit	4/8/1
Processing Material Thickness	Copper, Aluminum Thickness	Mm	0．5-6.0
Processing Material Thickness	Steel Thickness	Mm	0．5-3.0
Processing Material Thickness	Stainless Steel Thickness	Mm	0.5-2.5

Products and Details:

For more information about the machines specifications download our machine presentation or write to us via email

CNC Milling

5 Axis vertical machining center- OKUMA GENOS M460V-5AX

The spindle produces less vibration and power loss at the tool tip for outstanding surface finishes and metal removal rates.

Surface finish up to 0.4 Ra

Maximum Detail dimensions:
Χ: 600mm Υ: 600 mm Ζ: 400 mm

Vertical machining center RAIS M550 is designed to perform various machining operations on medium-size work pieces in high cutting speed and feed conditions. Working table size: 1200 x 500 mm. Maximal strokes on axis 1010mm x 550 mm x 510 mm .Maximum work pieces weight – 500 kg.

Details and assemblies

Extrusion line for details from PVC and PC

Two extruders with screw head 45mm and 60mm.

Pulling device CAT200 providing permanent speed of the pulling out of the formed by the calibrator shaped deatail. Automatic cutting device.

One line for Polycarbonate Coextrusion

The Extrusion profiles we produce:

SLA 3D Printing

SLA or Stereolithography 3D printing is the most common resin 3D printing process that has become vastly popular for its ability to produce high-accuracy, isotropic, and watertight prototypes and end-use parts in a range of advanced materials with fine features and smooth or matte surface finish.

Layer height 0.01-0.015

Accuracy 0.01mm

Printer Dimensions – 300mm x 298mm x 164mm

Details:

CNC Milling, Turning, Grinding

Our milling and turning machines give us a possibility to produce complex details with excellent quality. With them we produce tools, maintenance of our instruments, production of small-medium quantity parts.

Details:
