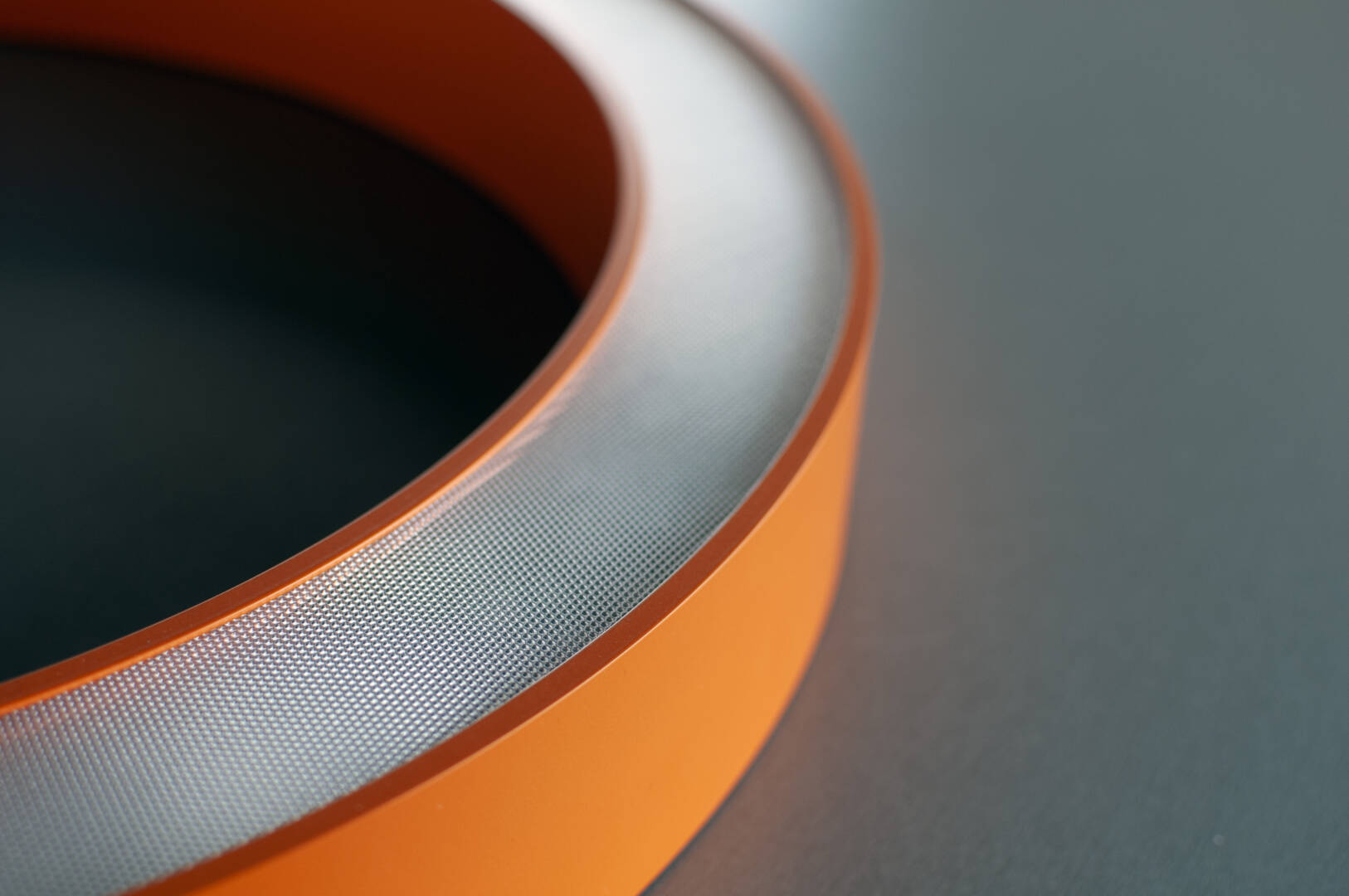

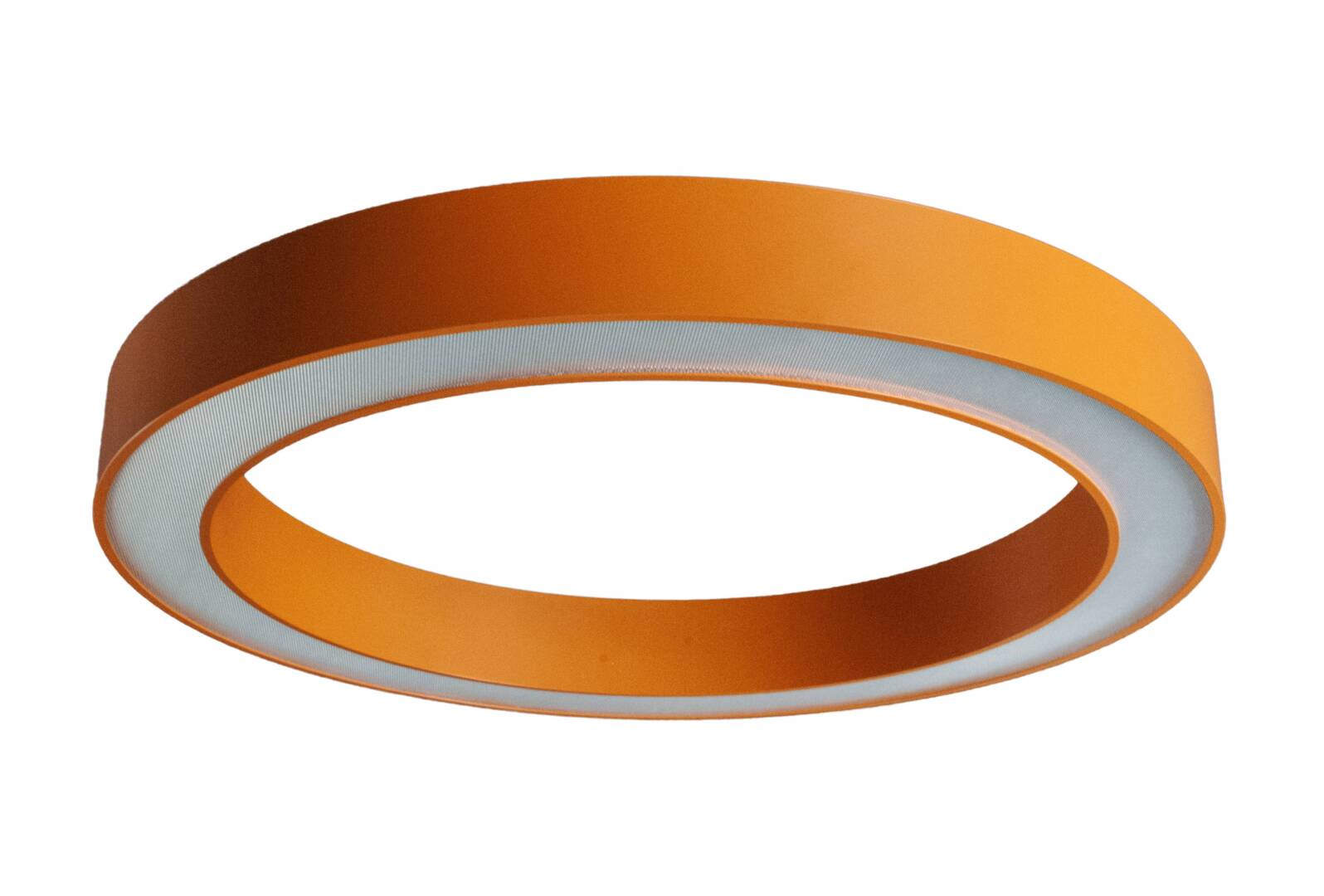

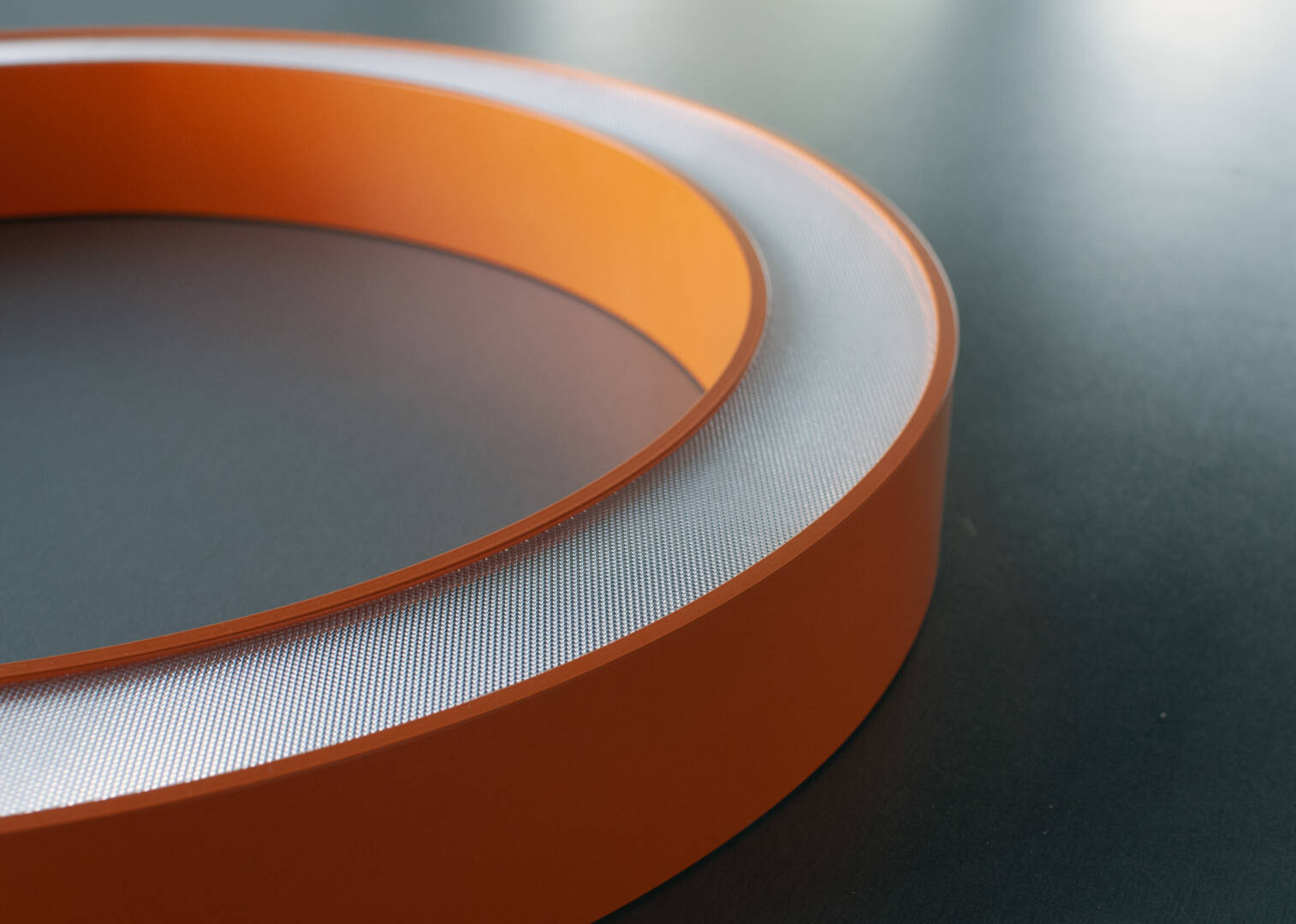

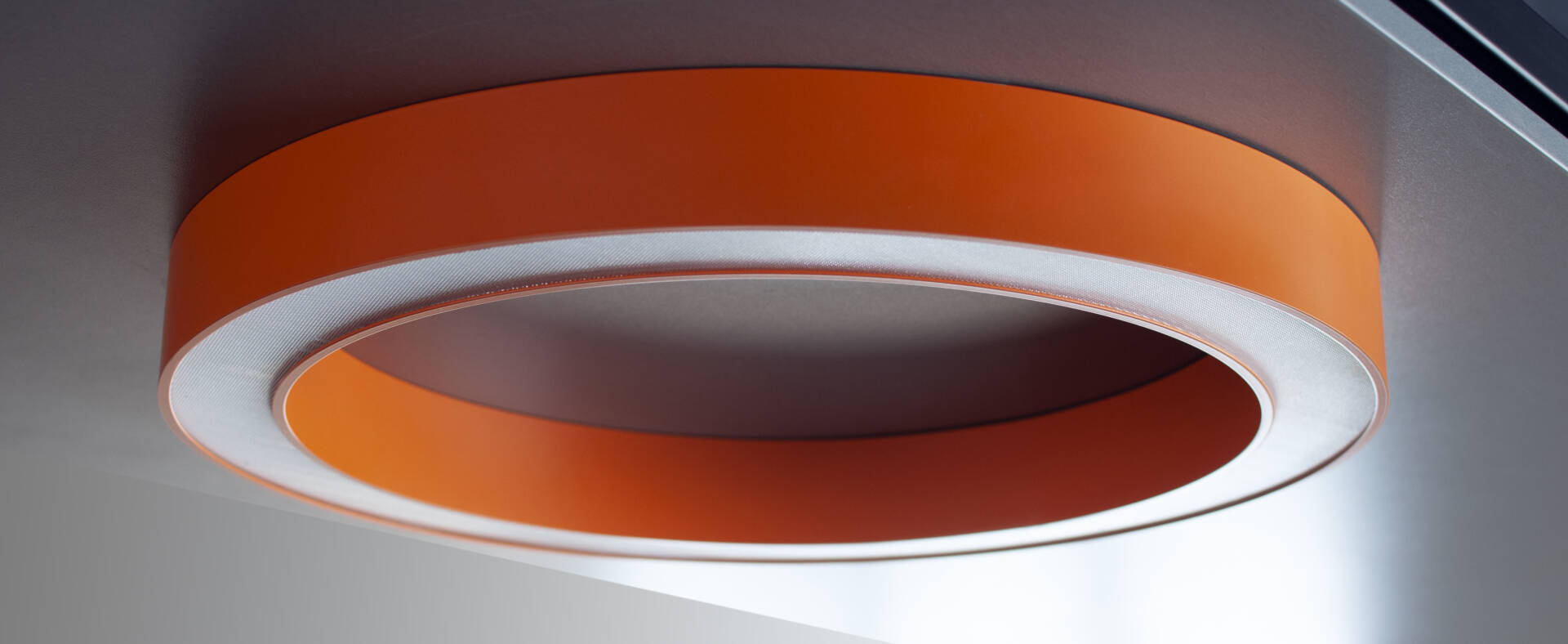

ELISA – Circular Lighting Fixture
IP40/ Up to 12300 lm/ Variable Diameters / 4000K / CRI>80 / Surface/ Suspended/ 5 years Warranty
Unleash your creativity with our luminaire Elisa. Combine sizes, colours and shapes with this circular luminaire that blends in a timeless elegance within any space.
Advantages and Options
- Design-oriented: Low luminaire height. Just 65 mm.
- Long service life: Diffuser is made of non-yellowing microprismatic PMMA.
- Performance and Budget Variant: The Luminaire allows to choose between two solutions. High efficiency realised with LED Modules with long warranty period. Budget option with LED Strips
- Homogenous Lighting: NO blind spots are observed despite the low height of the lighting fixture
- Lighting Intensity controllable via dip-switch : The Performance variant allows you to choose the lumen output on site or change it in your warehouse to satisfy the conditions of your project
- A Choice for colour: Our construction allows you to combine Different Outer and Inner Ring Colours. Black, White and Grey are standard colour options. Additional colours would be available on request.
- Made in Bulgaria : The Luminaire is designed, manufactured and its production is controlled in our facility in Bulgaria. During the process of designing Mareli’s team remodelled our own bending machine for this profile.
EFFICIENCY
up 125 lumens per watt in LED Module variant
up to 82 lumens per watt in LED Strip
MOUNTING
Suspended and Surface
LIGHT SOURCE
LED
OPTICAL SYSTEM
PMMA Diffuser
MATERIALS
Aluminium Body
Microprismatic PMMA Front Cover
WIRING
ECG
On request:
DALI
LIGHT DISTRIBUTION
Direct
Indirect Lighting Distribution on request* ( The driver is moved to the ceiling )
SURFACE FINISH
White / Black / Grey colour
*Option for different ring colours
Dimensions
Diameters:
Outer ring 600mm, Inner ring 470mm
Outer ring 860mm, Inner ring 730mm
Outer ring 1120mm, Inner Ring 990mm
APPLICATIONS
Galleries / Offices / Hotels / Retail / Malls / Education /
ACCESSORIES
On request:
Hide the box for the driver used for Direct&Indirect Option
SPECIFICATIONS:
- Colour rendering index >80 Ra
- Standard Colour temperature 4000K, 3000K and 5000K on request
- Durable and Long service life
- No Infrared radiation
- No UV rays
- Can be easily controlled and programmed
- Fast Installation
- 5 years warranty, extended warranty on request
- The Luminaire is designed, manufactured and its production is controlled in our facility in Bulgaria
Luminous flux and connected electrical load are subject to an initial tolerance of +/- 5%. Tolerance of color temperature: +/-150 K. Unless stated otherwise, the values apply to an ambient temperature of 25°C.
