Linea 50 Recessed Lighting – Seamless Architectural Linear Solution

Elegant, versatile. Designed for modern spaces.

Linea 50 recessed lighting is a seamless architectural linear solution designed for offices, galleries, hotels, and retail environments. With advanced diffuser options and IP65 protection, the Linea 50 recessed lighting system combines performance, visual comfort, and modern aesthetics for demanding interior projects.

Why Choose Linea 50 Recessed Lighting

• One profile, multiple diffuser options – Standard versions (MPO, MP, MPF diffusers) or IP-rated versions with silicone gasket for challenging environments.

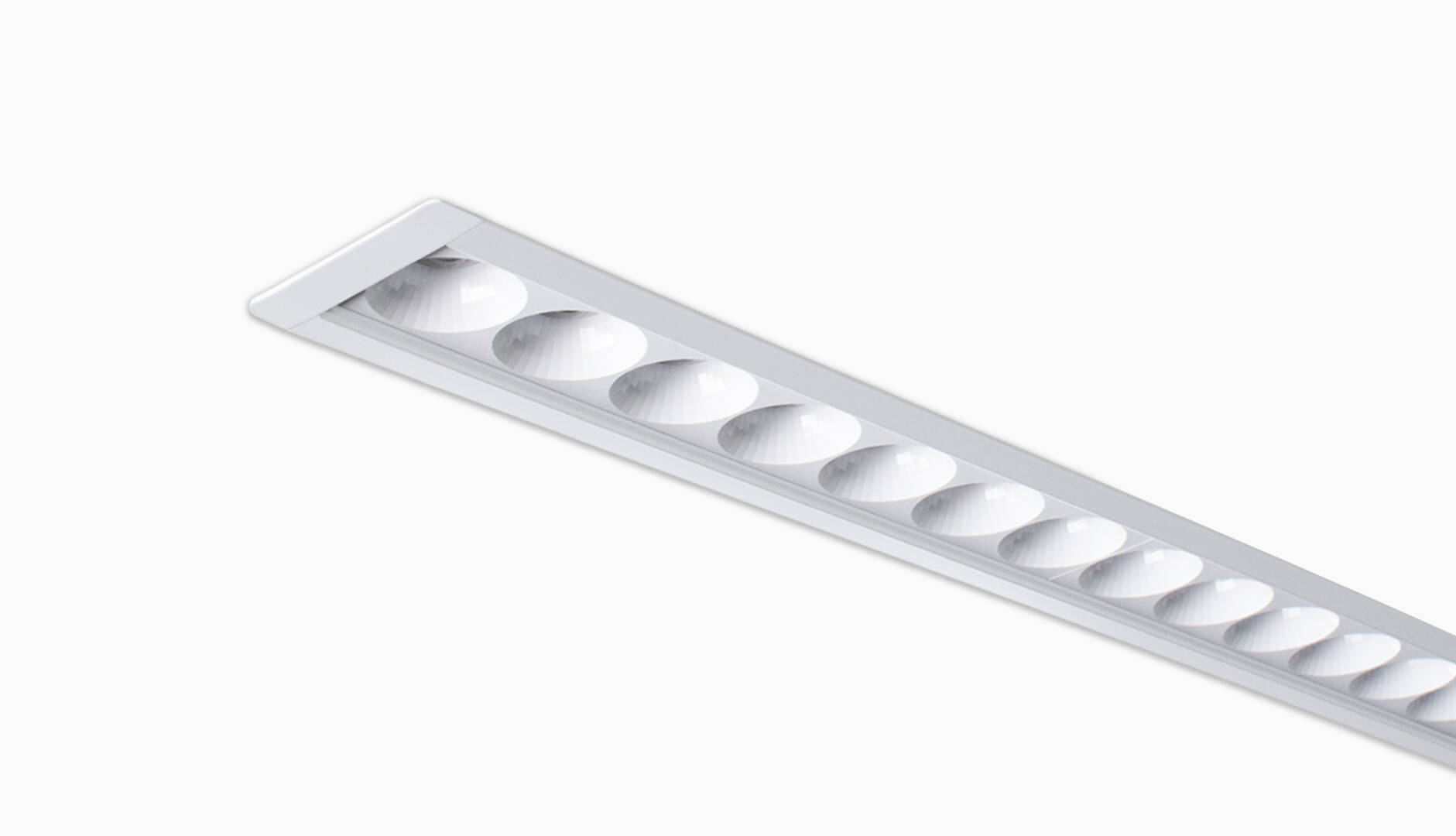

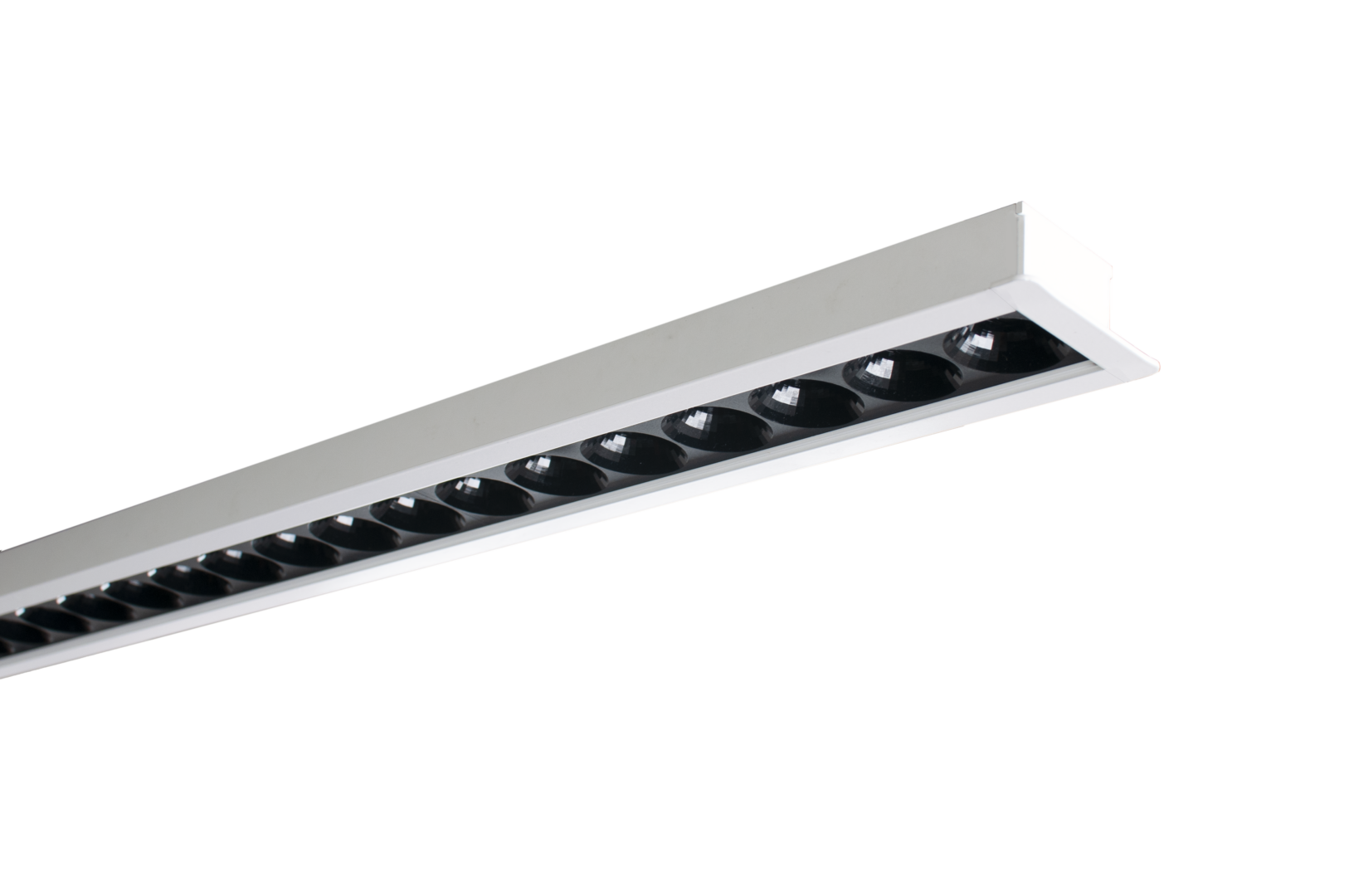

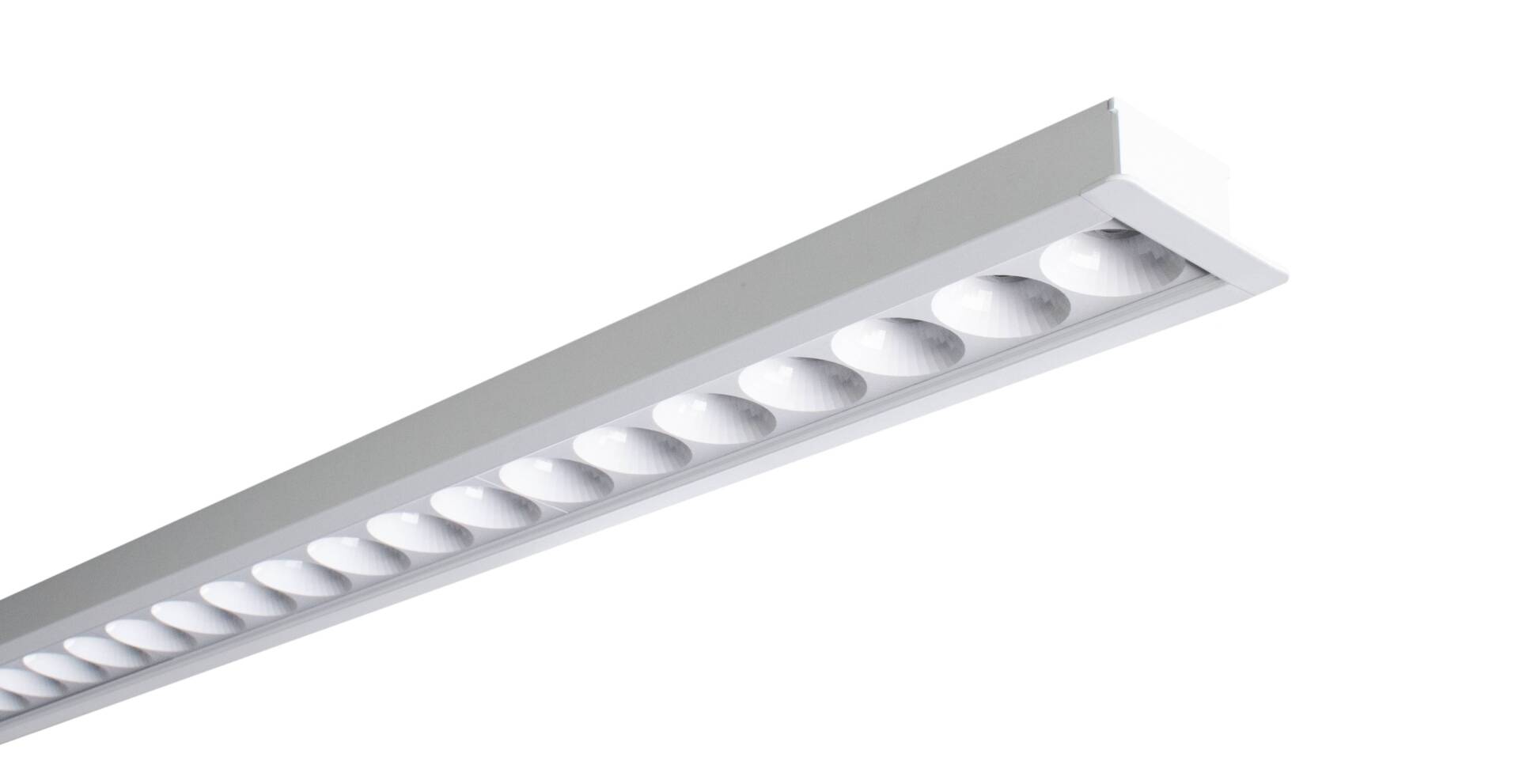

• Low-glare & high-efficiency optics – Dark reflector for enhanced visual comfort, bright reflector for maximum efficiency.

• Seamless continuous recessed lighting design – Easily connect profiles to create uninterrupted architectural lighting runs.

• Enhanced IP protection – With aluminium end caps and silicone-gasket diffusers, achieve ratings up to IP65 for reliable use in humid or dust-prone areas.

• Customizable performance – Available in multiple lengths, with options for colour temperatures, DALI control, tunnable white, and integrated sensors.

• Architectural aesthetics – A discreet recessed form factor that blends into ceilings while delivering brilliant, controlled light.

Seamless Continuous Recessed Lighting Design

Linea 50 Recessed makes it simple to create uninterrupted lighting lines.

Profiles connect seamlessly with middle connections, ensuring a clean and uniform look across any interior space.

Technical Specifications – Linea 50 Recessed Lighting

Mounting

• Knauf / False Ceiling

Light Source

• LED

Optical System

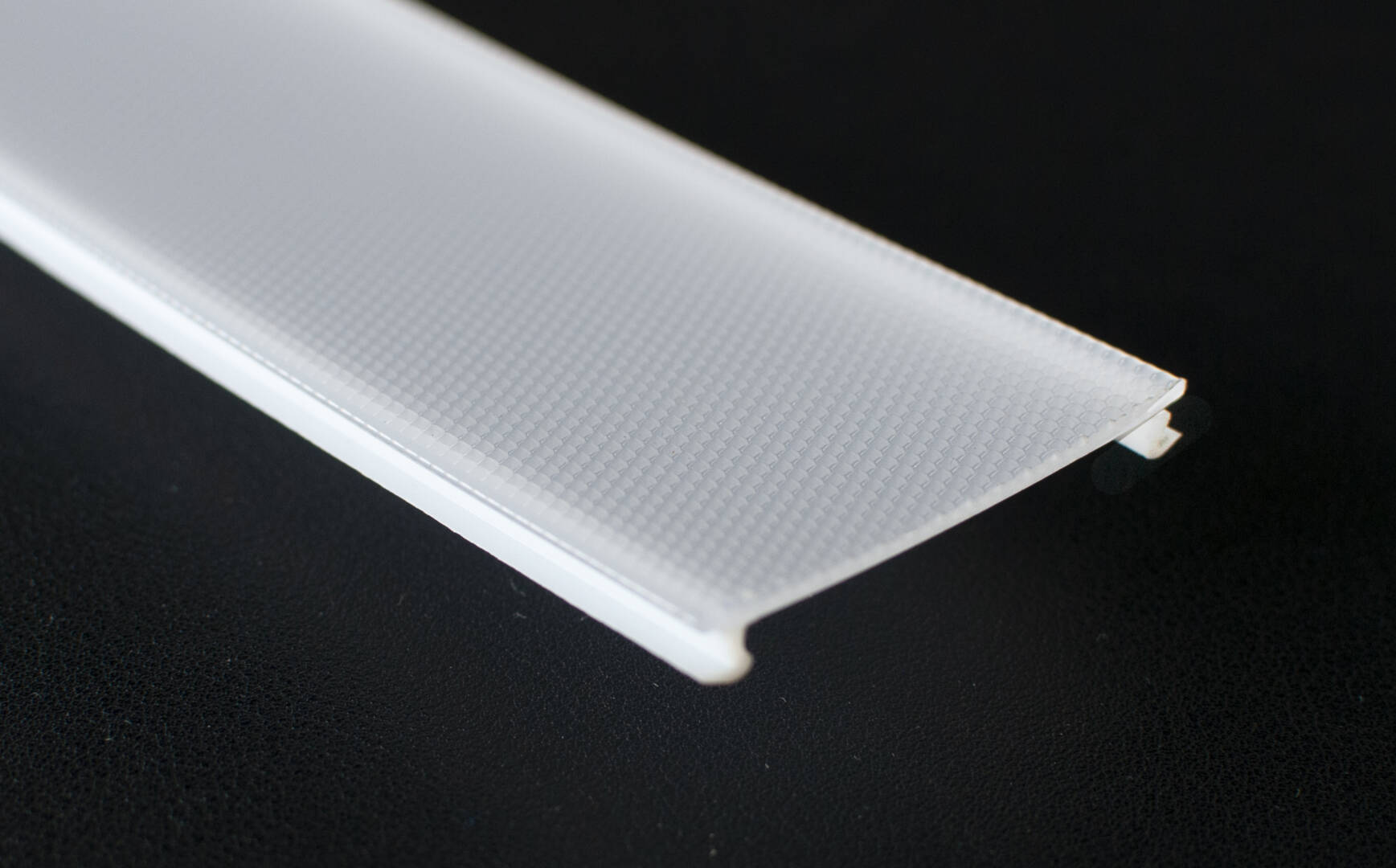

• Microprismatic PC diffuser

• PC diffuser with silicone gasket

• PC reflector + PMMA 8N lens

Materials

• High-quality Aluminium Construction

Wiring

• ECG

• DALI (on request)

• Emergency kit (1h, 3h) on request

• Tunable White & Motions Sensors available on request

Light Distribution

• Direct

Surface Finish

• White / Black / Grey

Applications

• Offices, galleries, hotels, retail, malls, education, hospitality spaces

Accessories (on request)

• Aluminium end caps with silicone gasket

• Coextruded polycarbonate diffuser with silicone gasket

• 20m microprismatic diffuser rolls

Performance

• Colour Rendering Index (CRI): >80 Ra

• Colour Temperatures: 3000K / 4000K / 5000K

• Long service life with 5-year warranty (extended warranty available)

• No IR or UV radiation

• Easy to control and program

• Fast installation

Tolerance Information

• Luminous flux & electrical load: ±5%

• Colour temperature: ±150K

• Values apply at 25°C ambient temperature unless specified otherwise.

Applications of Architectural Recessed Lighting

From modern office environments where low-glare performance is critical, to galleries and retail spaces that require seamless integration, the Linea 50 recessed lighting system adapts effortlessly. With its IP65 version, it is also suited for spaces with higher environmental demands, making it a flexible solution for architects and designers.
